ModularFlex System

4P Dispensing & Proportionating System

Format	Code
E-Gap System	HSP9184
AirGap System	HYD3578AG

Overview

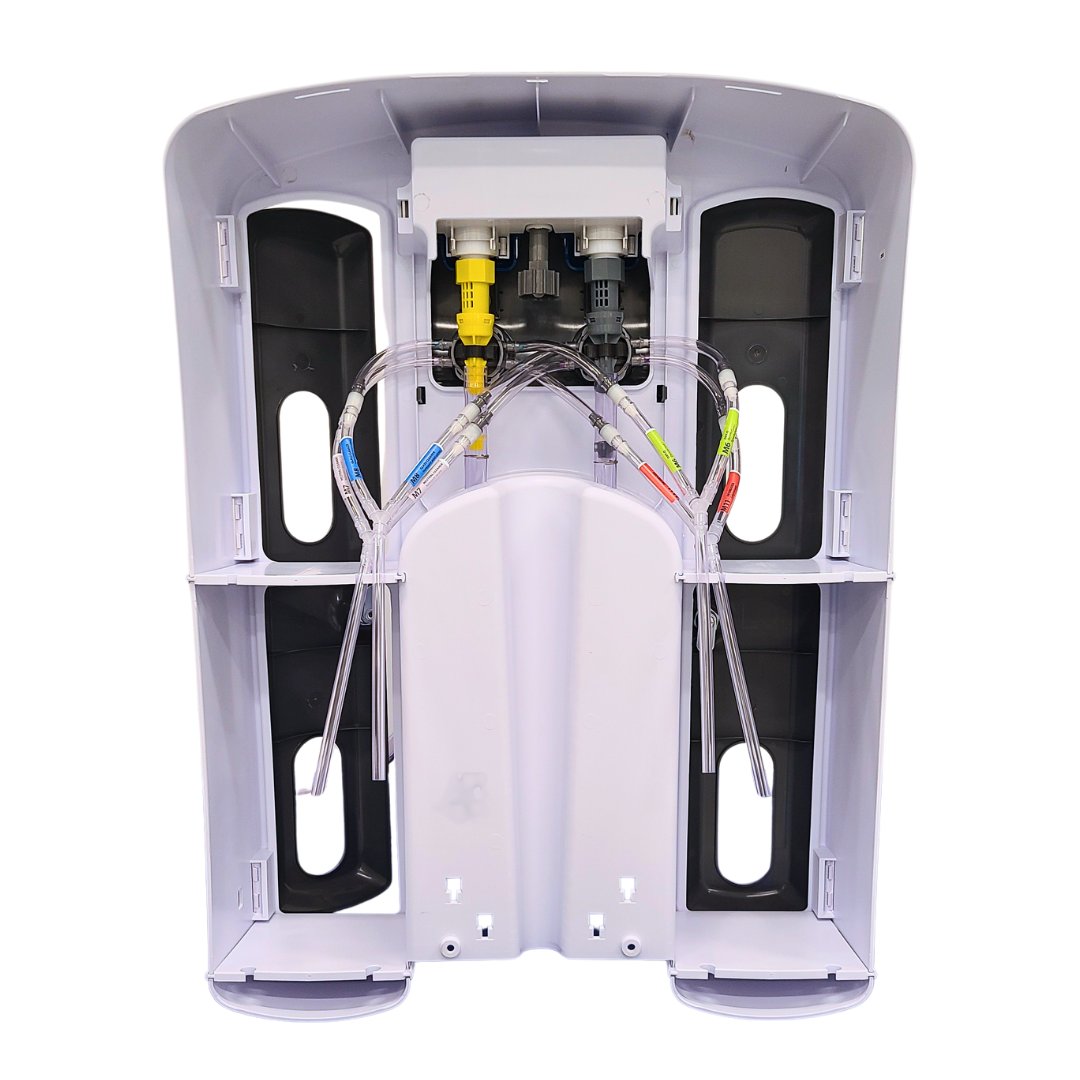

ModularFlex is a complete chemical dispensing system and dilution control solution that redefines what commercial cleaning should be: efficient, safe, eco-conscious, and cost-effective.

This system houses up to 4 concentrated products at a time from the Modularflex Series, designed to handle the full spectrum of cleaning needs, ranging from restrooms and glass to degreasing, disinfection, and odour control. It also has two separate controllers for filling a spray bottle or bucket, adding another layer of dispensing flexibility and endless possibilities!

Ideal solution for Healthcare, Education, Building Maintenance, and other Commercial Cleaning Contractors cleaning high-traffic public spaces or maintaining strict sanitation standards.

Unlike standard systems that rely on bulky packaging or pre-diluted formulas, ModularFlex maximizes value by letting you pay for chemical, not water.

Explore the Modularflex Series and build your customizable dispensing platform today!

Approvals & Certifications

Where to use

Ideal For

Janitorial services
Healthcare facilities
Education institutions
Commercial buildings
Food service and hospitality

Specifications

Format	Code
Colour	Grey/White
TDG Regulated	No
System	Quad Dispensing
Maximum Temperature	120 °F
Flow Rates	1 - 3.5 GPM
Minimum Pressure	25 psi
Maximum Pressure	85 psi
Available Dilution Rates	Up to 17
Back Flow Preventer	E-Gap / AirGap
Lockable Cabinets	Yes
Rite-Connect Compatible	Yes
Certification	ASSE 1055B Approved

Features & Benefits

Maximum Flexibility: Dispenses up to 4 different 2L concentrates from our Modularflex series, supporting dilution ratios from 1:5 to 1:500, with dispensing options for both spray bottle and bucket

Fast Setup, Easy Use: Installs in minutes with pre-assembled, colour-coded connections and no-tool maintenance, cutting technician time and training requirements in half. Just dispense and clean!

Patented Pressure Regulation Technology: Ensures exact dilution every time, eliminating performance issues caused by fluctuating water pressure.

Built-In Back-Flow Protection: Available with E-Gap OR AirGap eductor option that stops cleaning chemicals from flowing back into your water supply. ASSE 1055B-approved technology that meets strict safety standards and helps protect your facility's water system.

Closed-Loop System: Sealed, spill-proof system that eliminates chemical exposure, reducing workplace accidents and ensuring safe handling.

Lowest Cost in Use: Delivers hundreds of applications per bottle, reducing overall cleaning costs while outperforming any other RTU options.

Waste Reduction: With super-concentrates, you can buy less and cut cardboard packaging and plastic waste, supporting your corporate sustainability goals.

Space-Saving Design: Compact wall-mounted unit replaces four bulky RTU containers, saving valuable janitorial closet space and simplifying chemical management.

Secured Storage: Lockable steel cabinet and tamper-resistant design protect users and your brand from misuse, contamination, or theft.

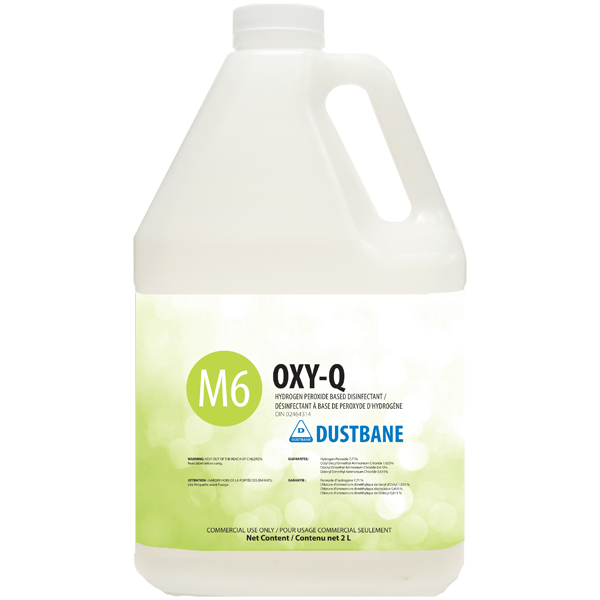

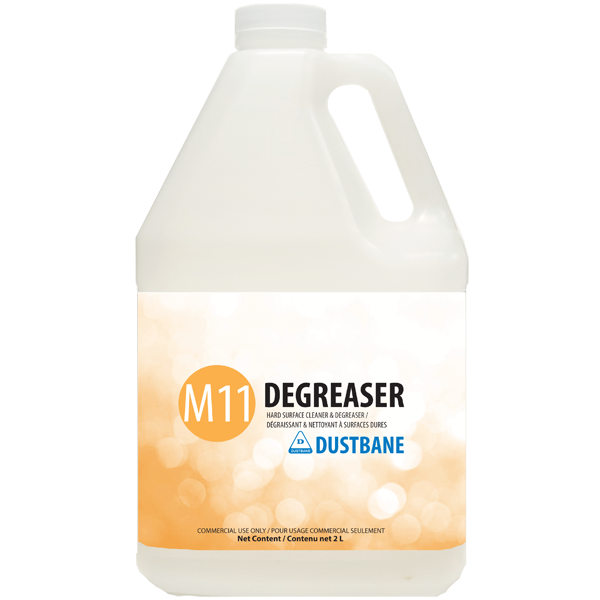

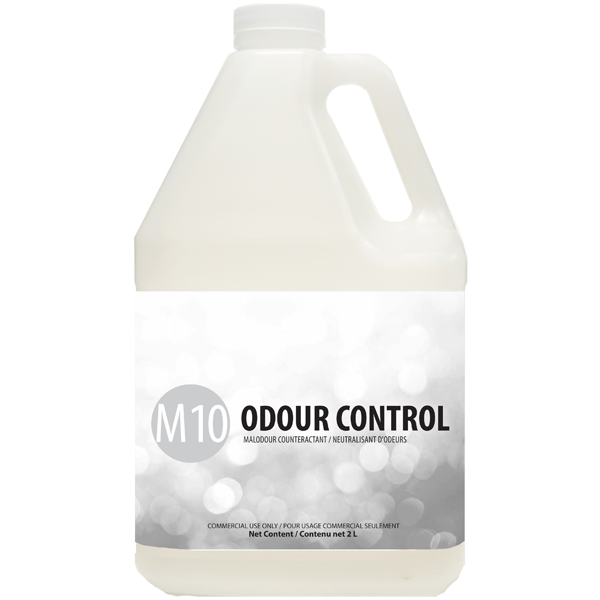

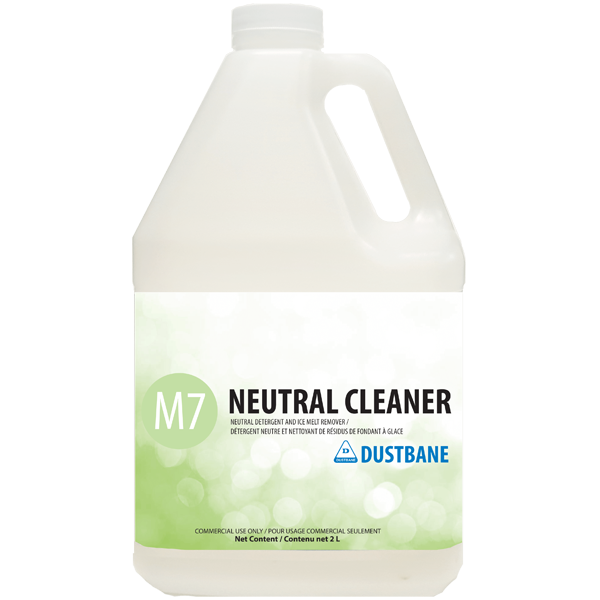

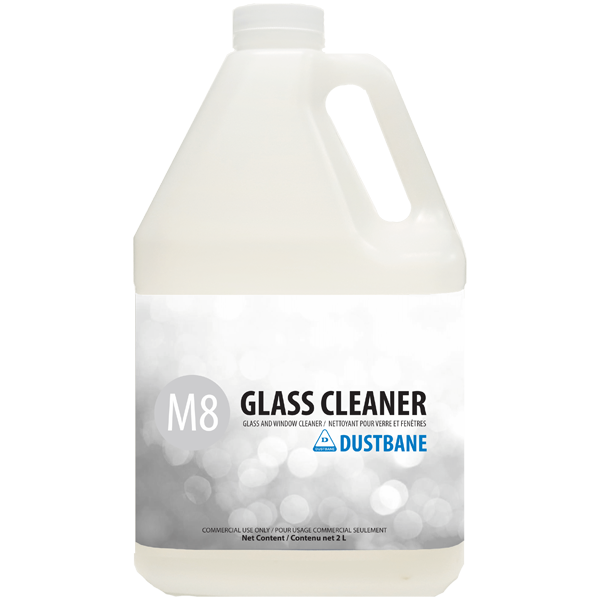

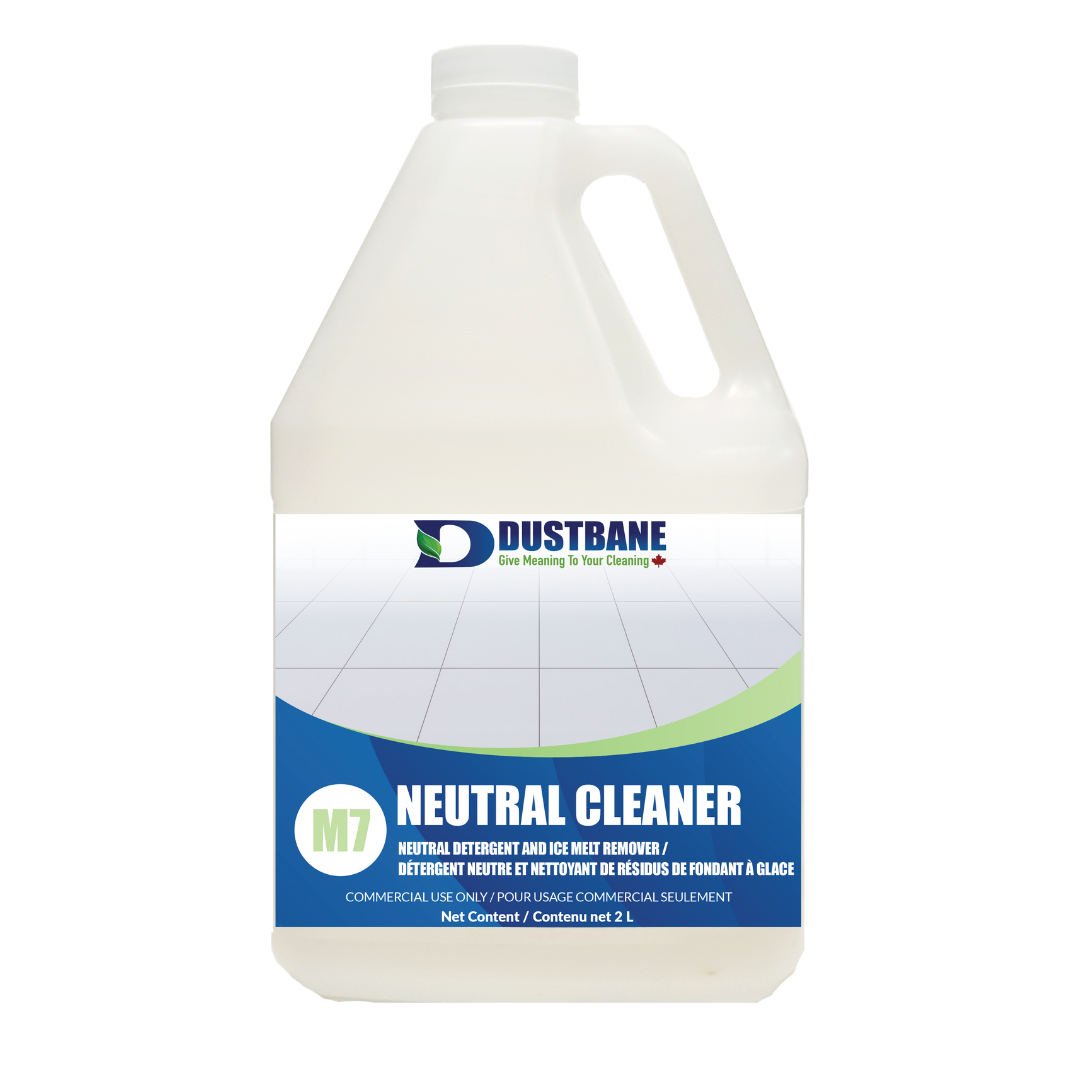

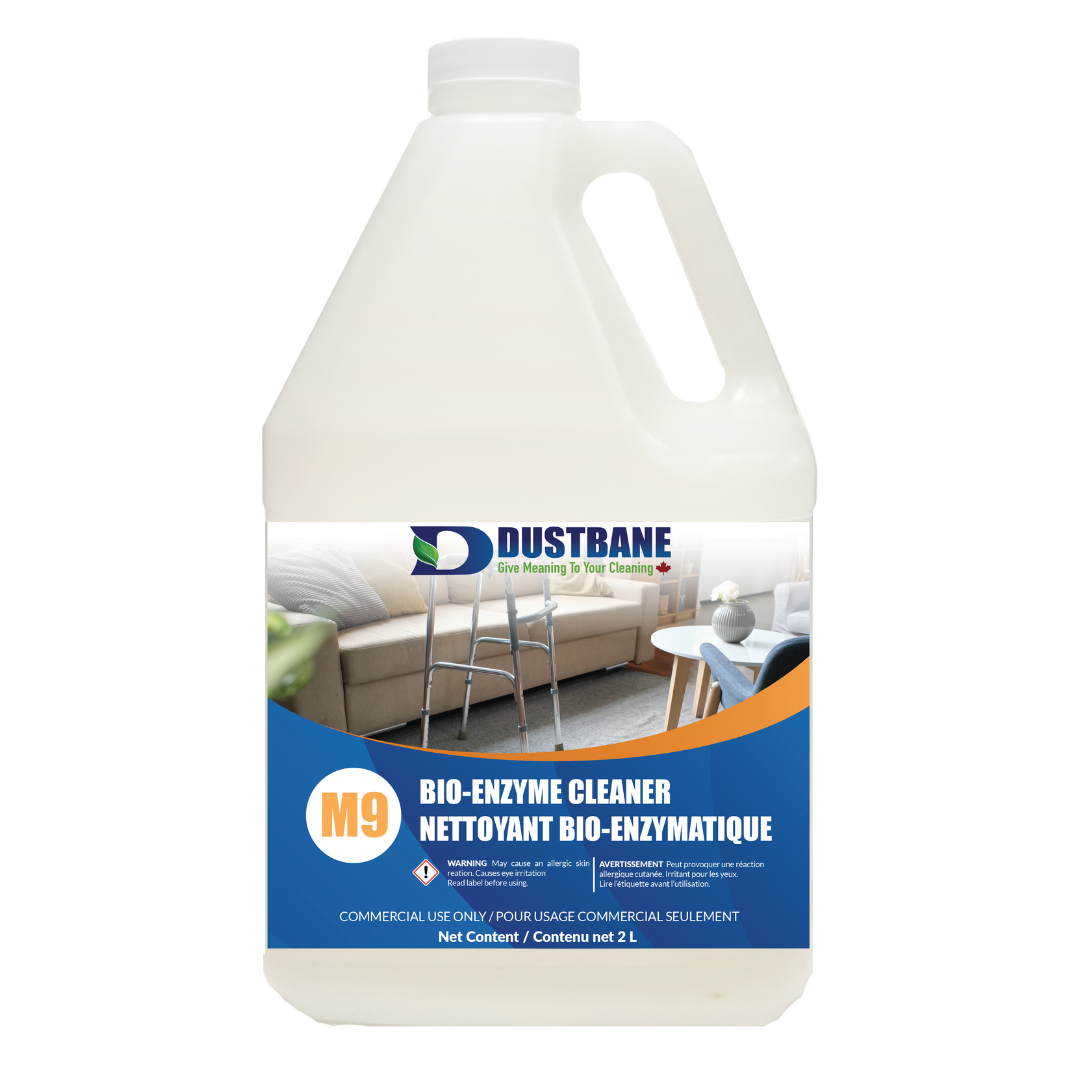

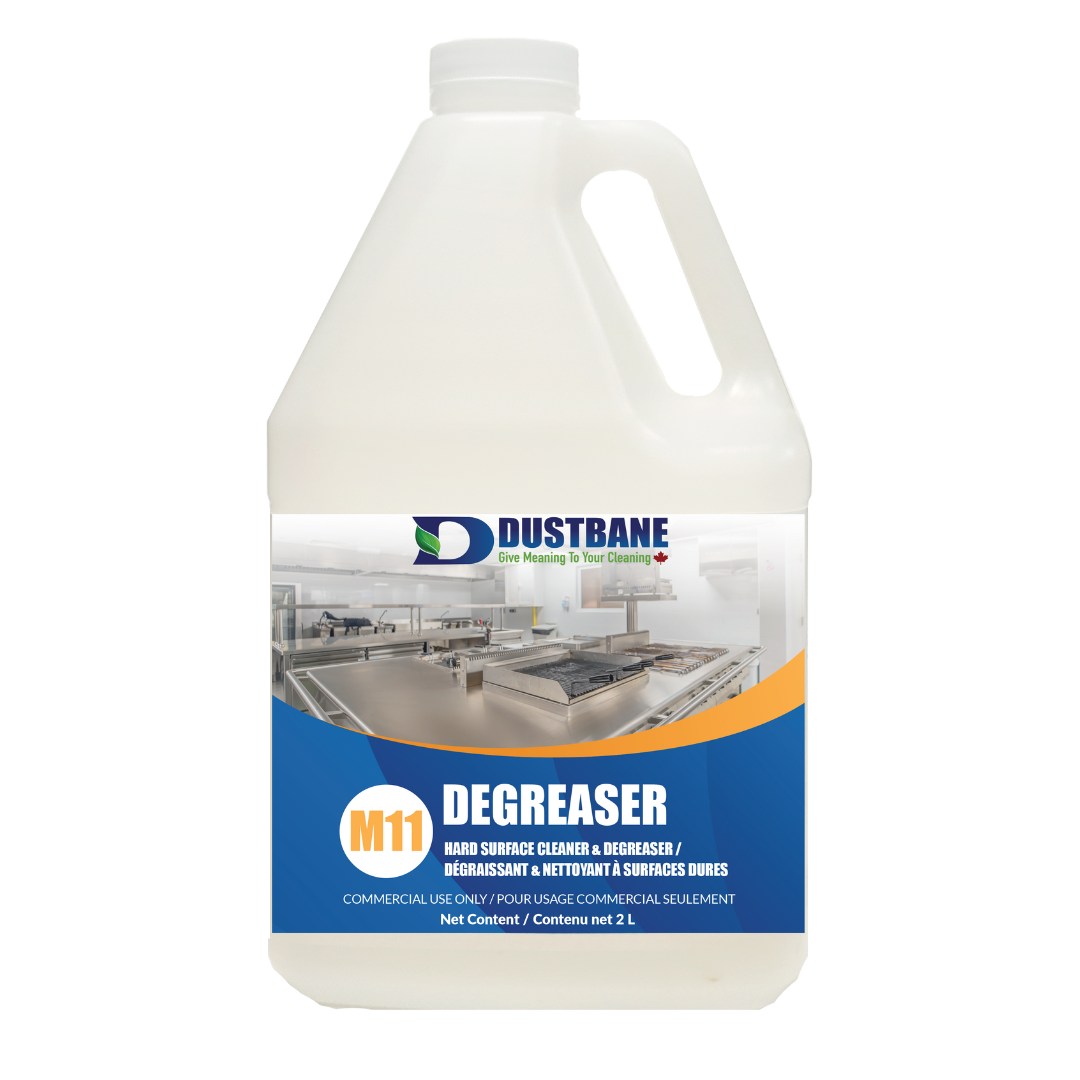

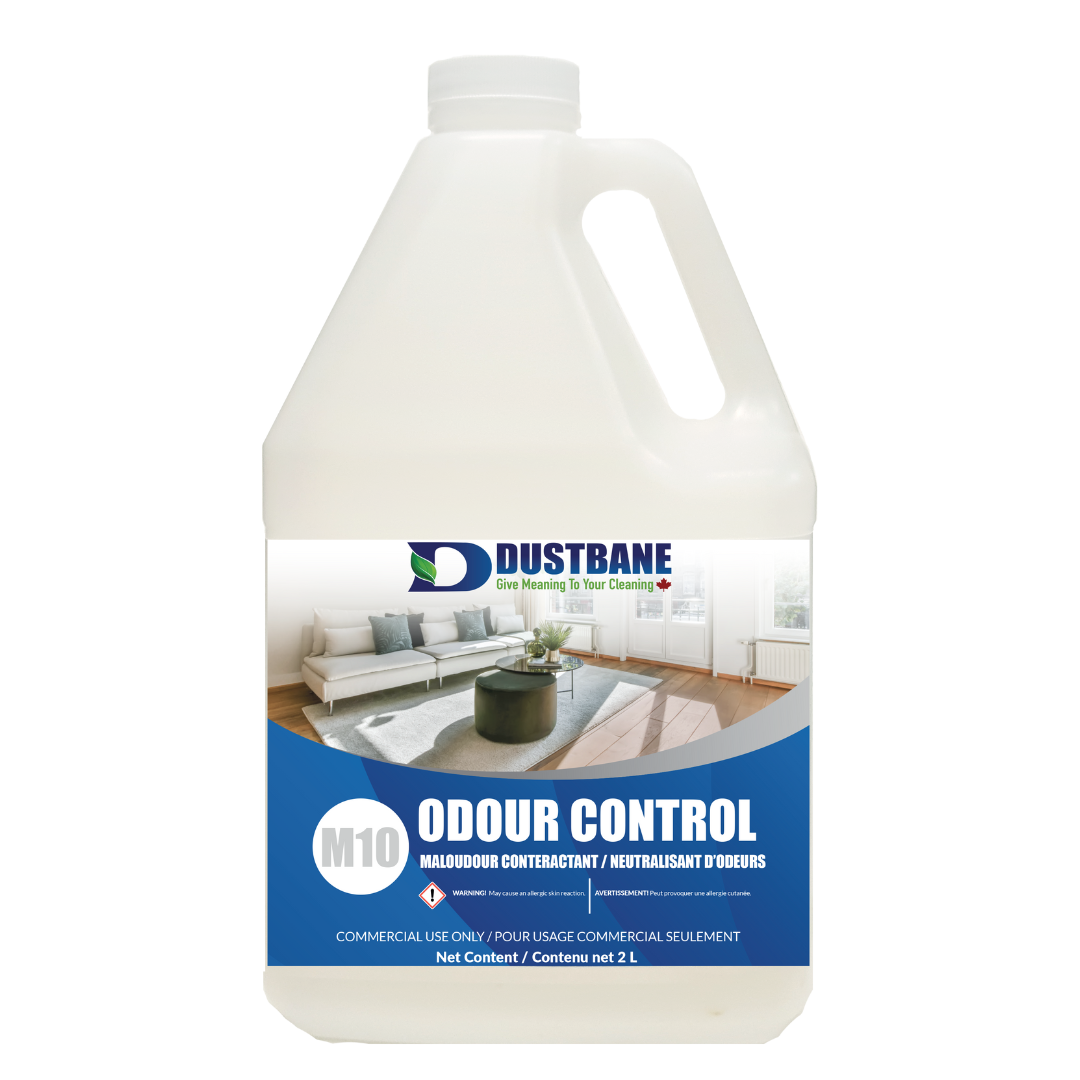

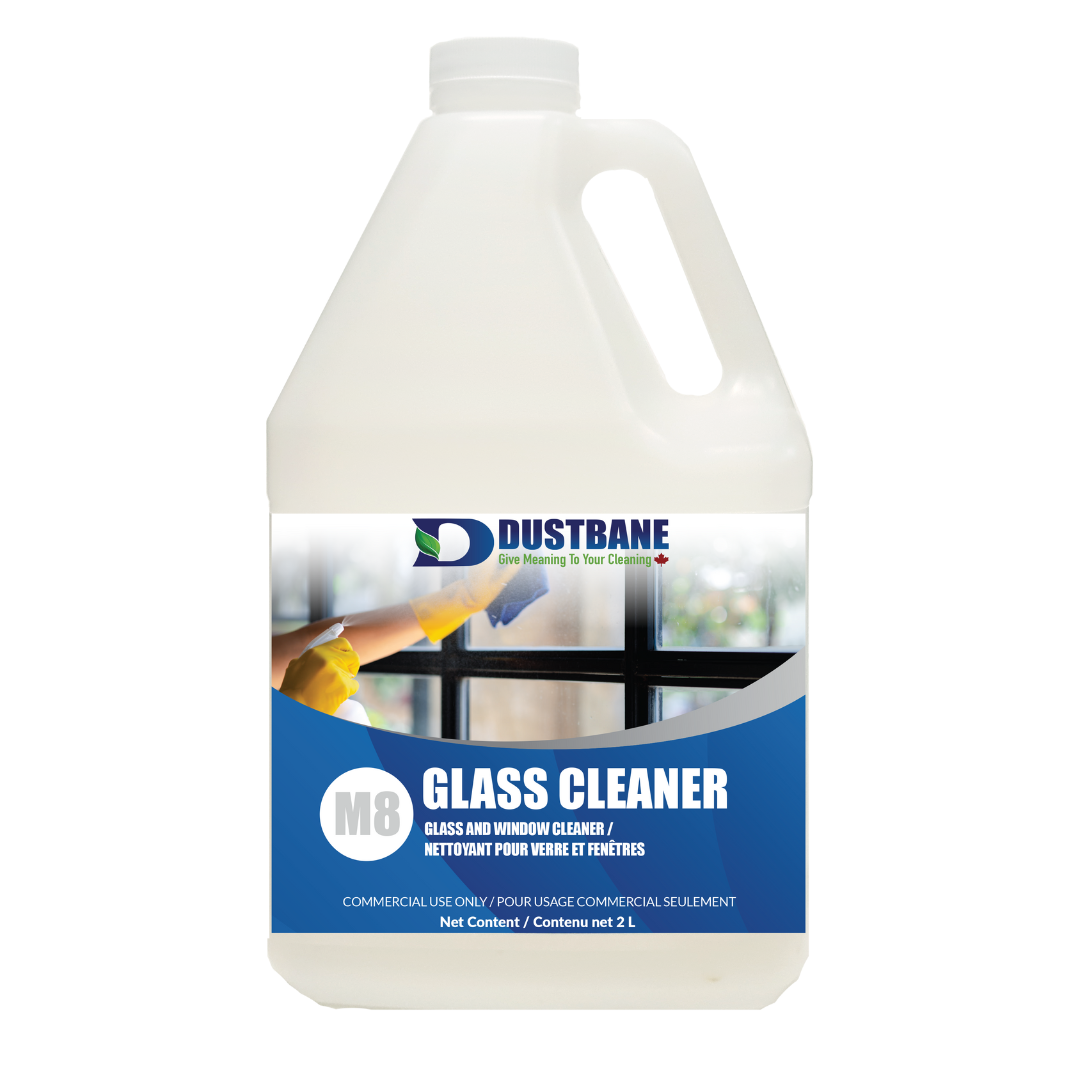

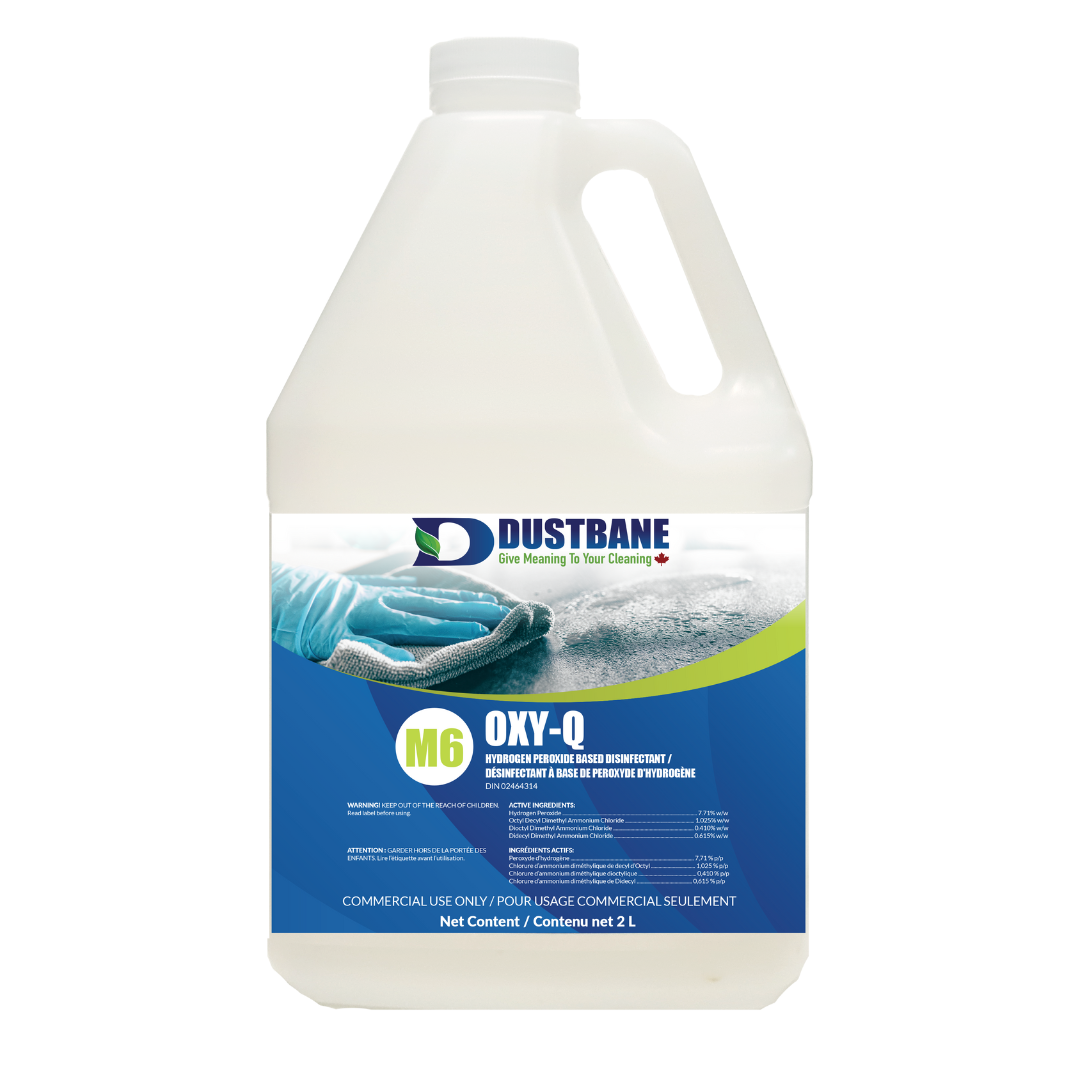

ModularFlex Chemical Series: The system offers a series of Canadian-made super-concentrated products that can handle everything from restrooms, glass, floors and odours to grease, bio-debris, and food-safe sanitizing.

Questions

Have another question? Contact Us to inquire about this product and others.

EnviroFlex and Eco Easy Fill proportioning systems streamline products, ensure proper dilution, and reduce waste.

ModularFlex and multi-use products like Excelsior simplify your chemical program significantly.

Approvals & Certifications

ASSE Certified

This product meets the American Society of Sanitary Engineering (ASSE) standards for plumbing and backflow prevention systems, certified to help protect potable water systems from contamination.
